Common wiring diagrams

Here you will find some common electrical diagrams to help you navigate your

more basic electrical projects in the home.

“The Electrical Doctor”
© Electricaldoc.com 2015

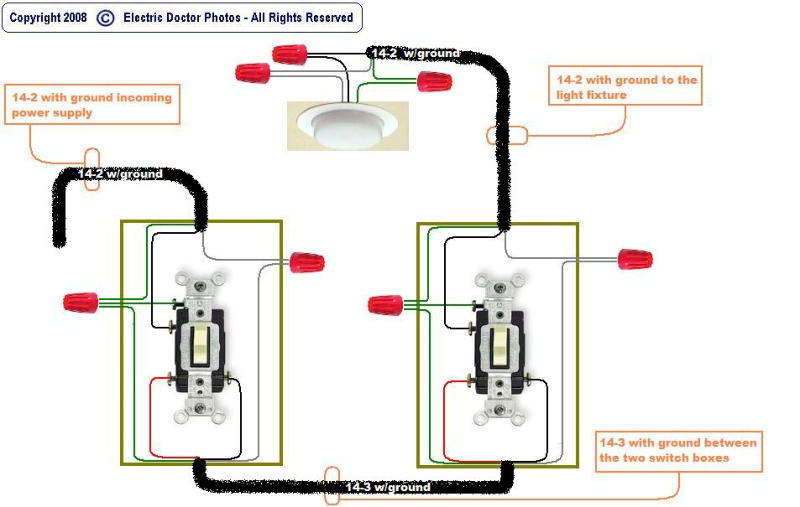

Two three way switches to

light.  Power and switch leg

in same switch box.

Two three way switches to light.

Power comes into first switch,

switch leg in the second switch.

We do not grant permission for any image on this site to be used on any online answer

website, no exceptions.

Two three way switches

to light.  Power comes to

light first, then goes down

to the switches

Single Pole Light Switch to Light

Single pole light switch to

light.  Power comes to

switch first.

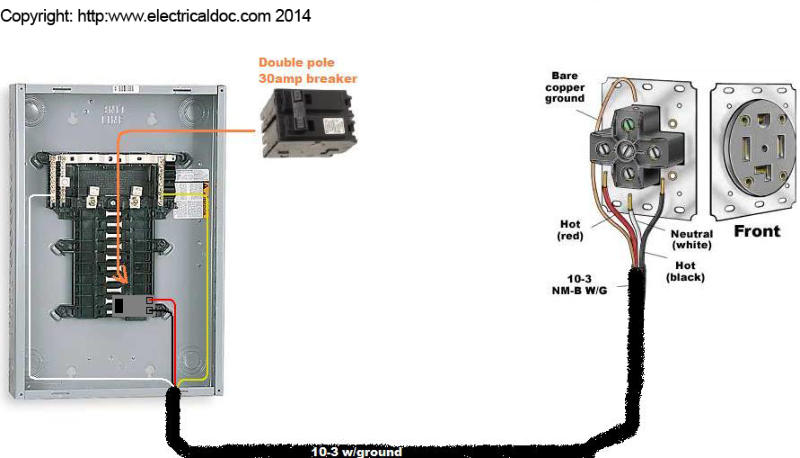

Dryer outlet installation

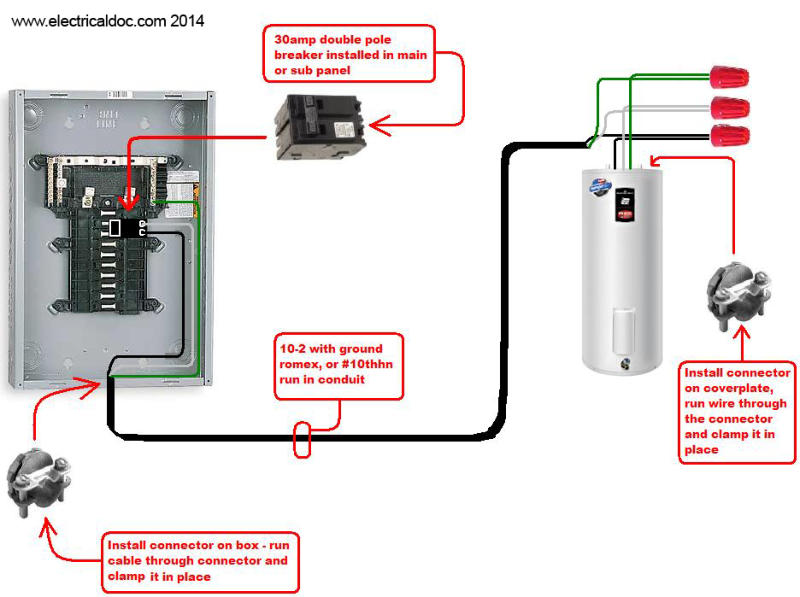

Hot water heater installation

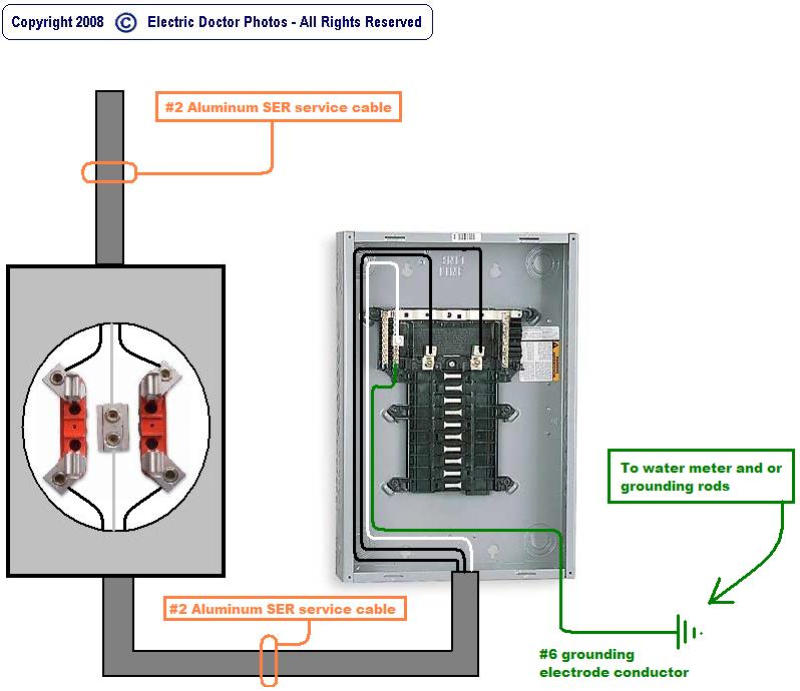

Main service wiring

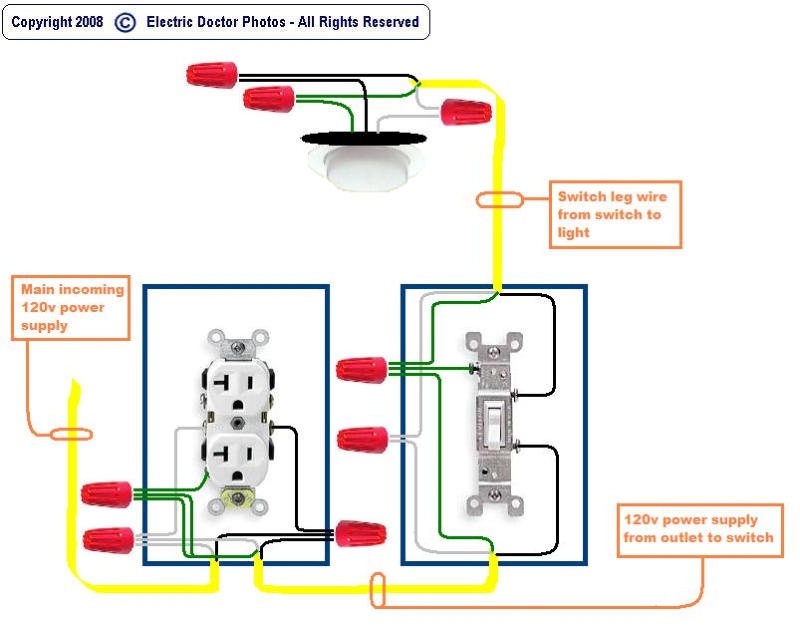

Outlet to switch, switch to

light

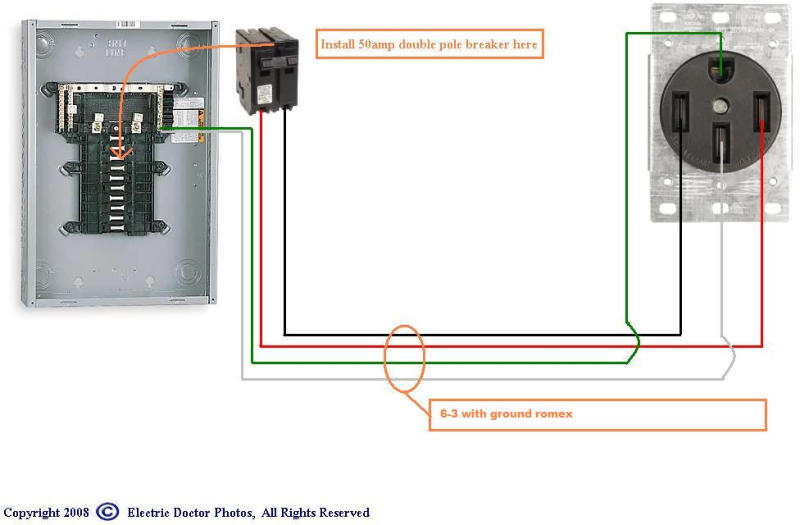

Range outlet installation

Subpanel in same building

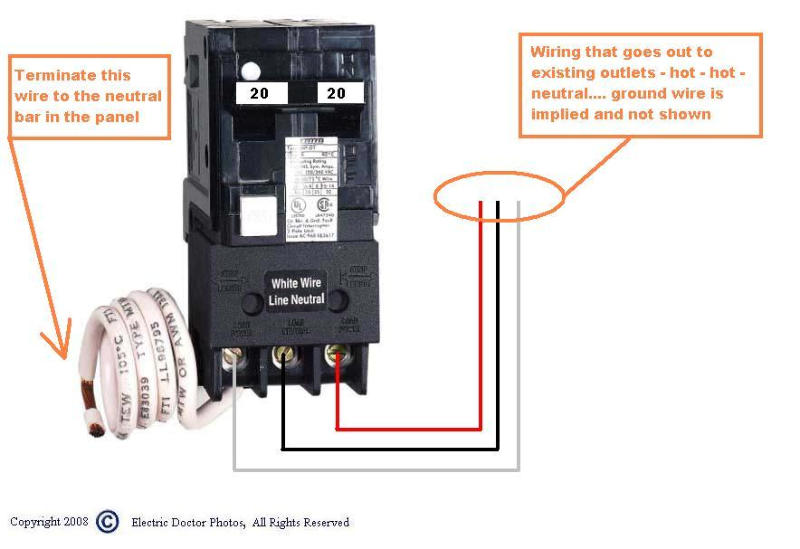

GFCI breaker wiring
